Ball Valve


Ball Valve 2 PC SE

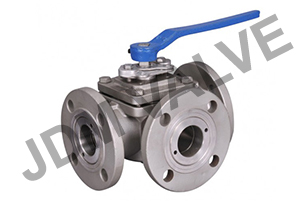

3 Way Ball Valve Flange End

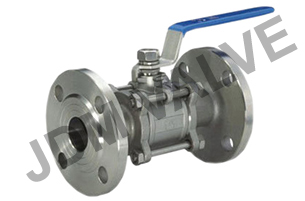

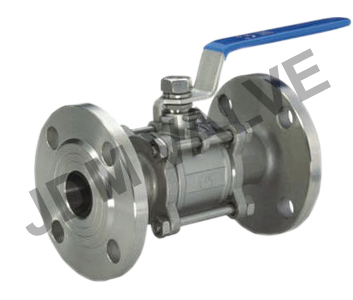

Ball Valve 3 PC FL

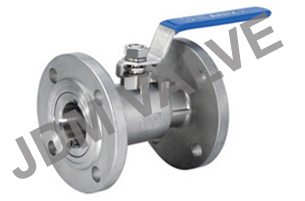

Ball Valve 1 PC FL







Ball valves are quarter-turn, straight-through valves that have a round closure element with matching rounded seats that permit uniform sealing stress. The valve gets its name from the ball that rotates to open and close the valve. Ball valves are used in situations where tight shut-off is required. They are wide duty valves, able to transfer gases, liquids and liquids with suspended solids (slurries).

JDM Ball Valves are designed and manufactured to considering maximum safety, performance and long life in, single piece design / two piece design / three piece design / floating ball type. These valves are easy to perform online maintenance, which saves time, energy and money. JDM Ball Valves are provided with blowout proof stem. Specially designed stem seal ensures zero passing through the gland. Moreover, with our innovative ideas, we have gained reputation of one of the top Stainless Ball Valves Manufacturers and Ball Valves Suppliers

Product Features:

  • Dimensional Accuracy
  • Split body design for easy maintenance
  • Seats and packing are replaceable
  • Positive shut off
  • Easy Installation
  • Durability
  • Leak Resistance
  • Blow-Out Proof Stem
  • High Flow capacity in Compact size Valves
  • Super finish Ball for effective sealing
  • 100% Factory tested

Technical Specifications:

Design 1 Piece / 2 Piece / 3 Piece and 3 Way / 4 Way
Type Full bore & Reduce bore
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Bar stock Steel CF 8 / CF8M
Forged (ASTM A 105/S.S. 304/S.S.316)
Trim MOC CF 8 (S.S. 304), CF 8M (S.S. 316)
Seat and Seal PTFE, Graphite
Ends Flanged / Screwed & Socket Weld (For Forged)
Rating Class 150 , 300
Operation Lever, Pneumatic
Design Standard Mfg. Standard
Size 15 MM to 100 MM
15 MM to 50 MM (For Forged)
