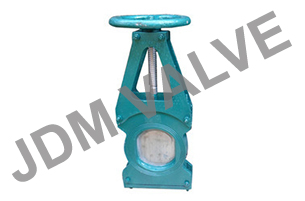

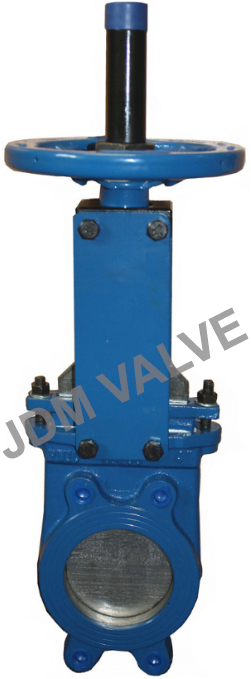

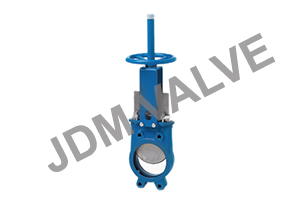

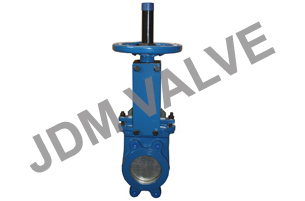

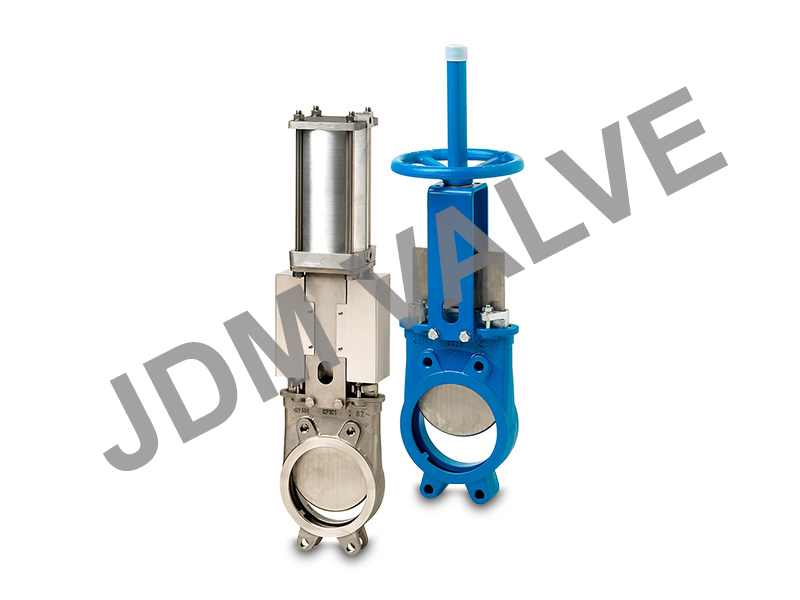

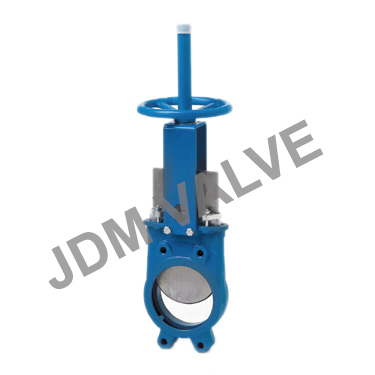

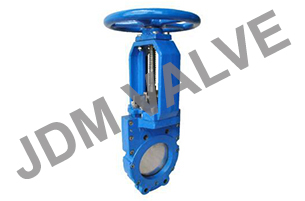

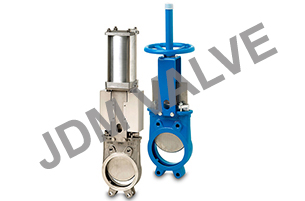

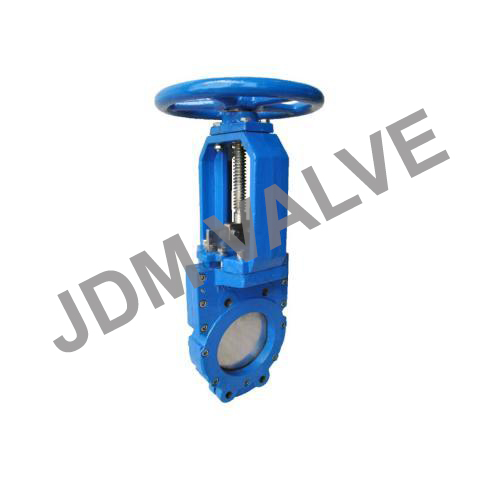

PULP VALVE / KNIFE GATE VALVE

The Manual Knife Edge Gate Valves are ideal for use in applications handling Slurries and Fibrous Media, and particularly in the Pulp and Paper Industry where they have the ability to “cut” through the medium to attain a seal. This is in fact how the Valves originally got their name. Knife Gate Valves have short face to face dimensions which make them convenient to install in Plants where space is at a premium.

Annu Valve Products has carved prominent position in the Knife Edge Gate Valves manufacturing market, because of superior quality and credibility.

Product Features:

  • Sealed design
  • Gate guided through full length of the stroke
  • Mechanically-retained molded body seal
  • Self-cleaning flush out corners prevent deposit buildup in sealing area
  • Full bore unrestricted flow area – no seat pockets or cavities
  • Bi-directional leak-proof sealing

Technical Specifications:

Type Outside screw & yoke, Rising Stem
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Disc MOC S.S. 304 / S.S. 316
Ends Flanged / Wafer Lugs
Rating Class 125, 150
Operation Hand wheel
Size 25 MM to 150 MM
