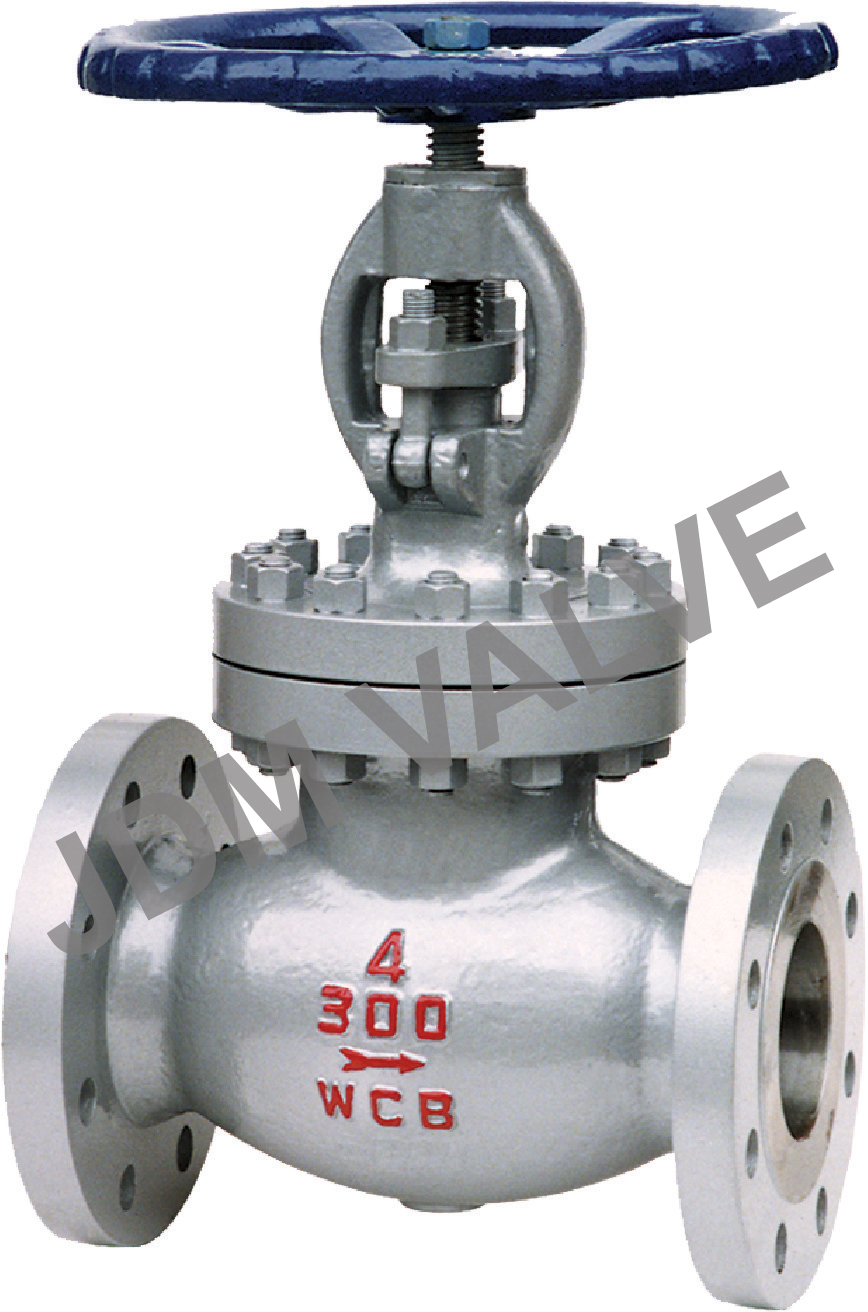

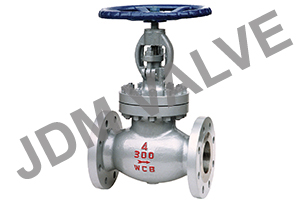

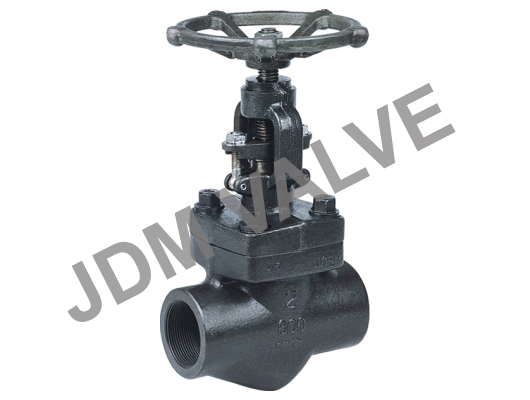

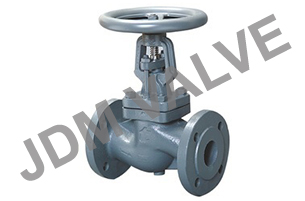

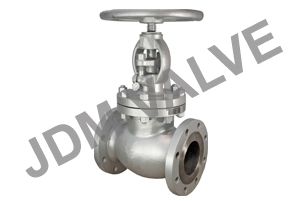

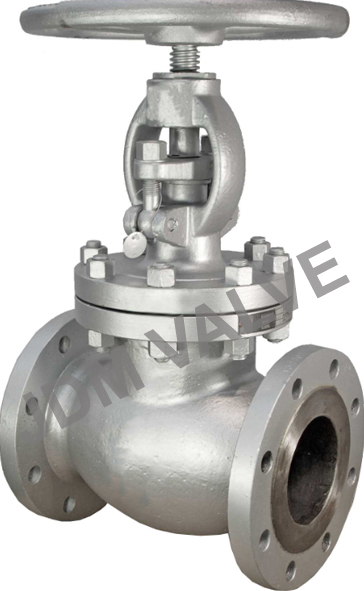

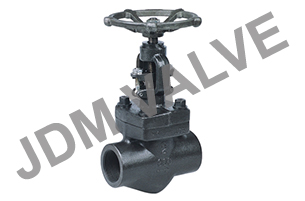

Globe Valve



Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. The baffle inside a globe valve causes the product to divert its direction to move through the baffle. This angled movement means that the product cannot flow as freely and causes a pressure drop after the valve.

A globe valve is primarily designed to stop, start and regulate flow. They are generally used for throttling purpose in the industry.

JDM Globe valve has excellent and precise throttling ability for high-pressure systems. JDM Globe Valves are designed for structural stability, mechanical strength and safe weld ability. Magnetic particle inspection is carried out for special applications. Our Globe Valves are Precision machined to suit various industrial uses.

Product Features:

  • Robust
  • Uniform Wall Thickness
  • Smooth flowing contours
  • Can be installed in liquid, steam, vapour applications

Technical Specifications:

Type Bolted Bonnet, Rising StemĀ  and Outside screw & Yoke
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Cast Alloy Steel (ASTM A 217 GR. WC 6/ WC 9)
Alloy Stainless Steel (ASTM A 351 GR. CF 3 / CF 3M)
Trim 13 % Cr. Steel / S.S. 304 / S.S. 316 / Stellited above class 600
Rating Class 150 , 300, 600, 900 , 1500 , ND 16, ND25, ND40, ND64
Actuation Hand wheel, Gear
End Flanged, Butt Weld
Design Standard Mfg. Standard
Size For 150 # ,300 #,ND 16, ND 25,ND 40 - 25 MM to 300 MM
For 600 # to 1500 # - 50 MM to 150 MM
