Needle Valve

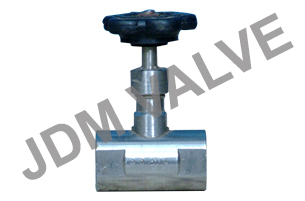

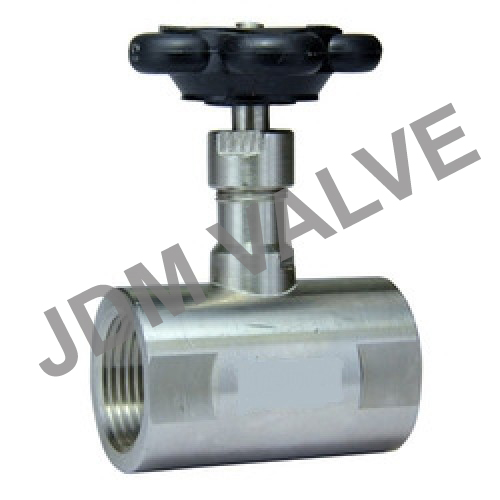

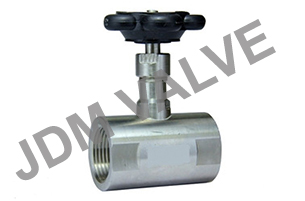

Needle Valve Round Body

Needle Valve Round Body

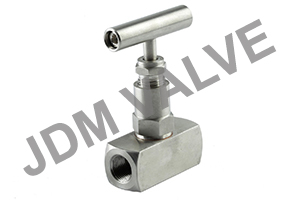

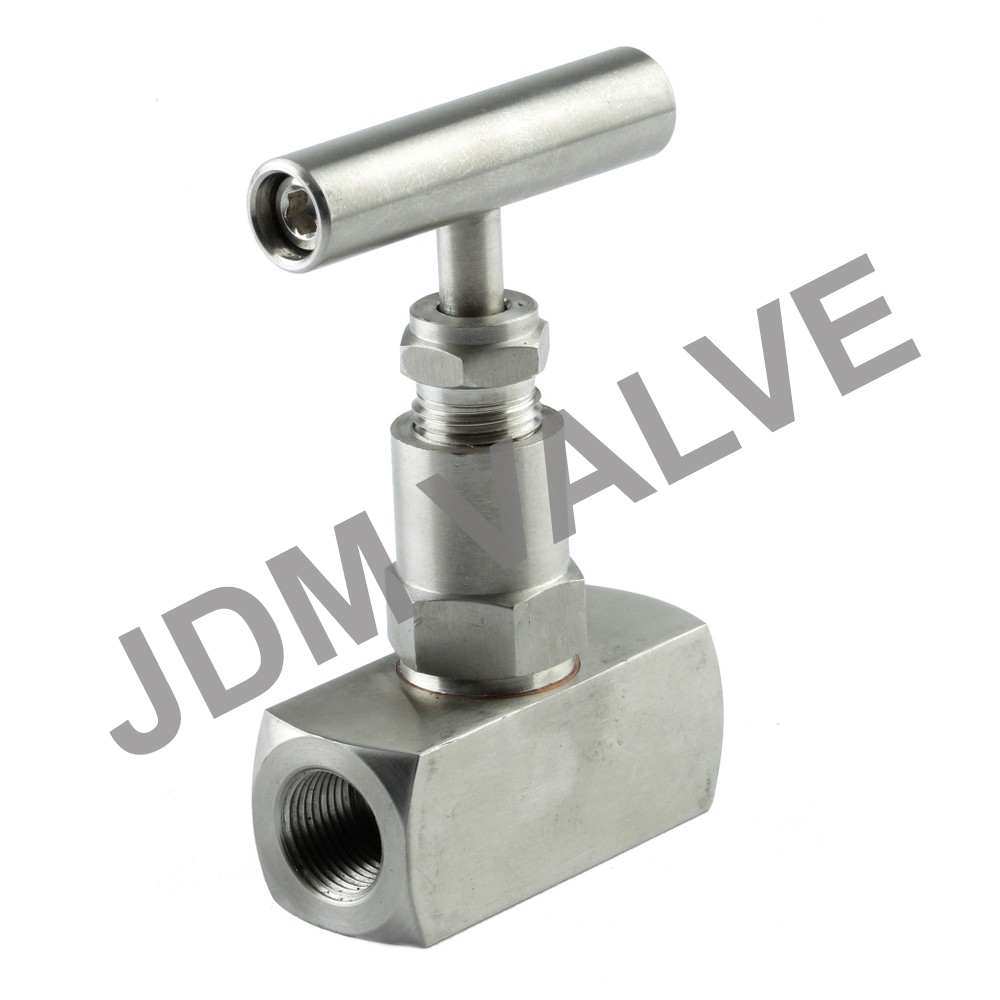

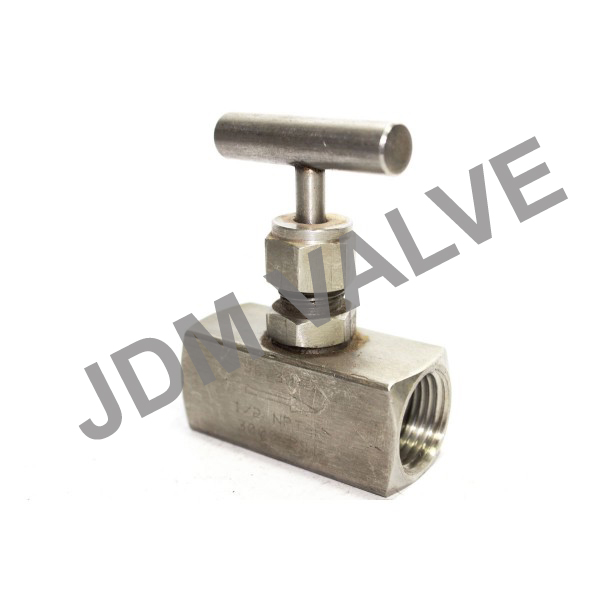

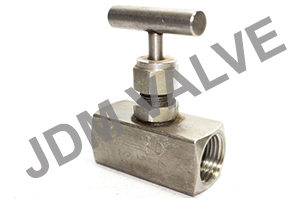

Needle Valve Square Body

Needle Valve Square Body



Needle valves have a slender, tapered point at the end of the valve stem that is lowered through the seat to restrict or block flow. Fluid flowing through the valve turns 90 degrees and passes through an orifice that is the seat for a rod with a cone shaped tip.

JDM Needle Valve are widely used to accurately regulate the flow of liquids and gases at low flow rates. The fine threading of the stem and the large seat area allow for precise resistance to flow. They can be used as both on/off valves and for throttling service. Small, simple needle valves are often used as bleed valves in water-heating applications. We also provide high pressure Needle Valve in Square body design.

Product Features:

  • Economical valve for regulating pressure up to 10,000 PSI
  • Suitable for air, water, oil, gas and other fluids
  • Available in Round and Square body design
  • Robust construction
  • Excellent durability

Technical Specifications:

Type Round body, Square body
Body / Bonnet/ Stem MOC S.S. Bar Stock 202, 304, 316
Seal Packing Viton* O-ring and Teflon* backup ring
Actuation Manual
Wheel / Handle Bakelite / Zinc Plated steel
End Screwed
Rating Class 125, 150
Design Standard Mfg. Standard
Size 06MM to 50MM

*Registered trademark of DuPont
