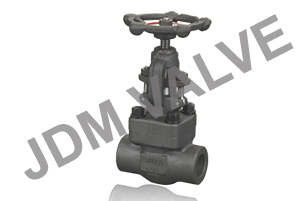

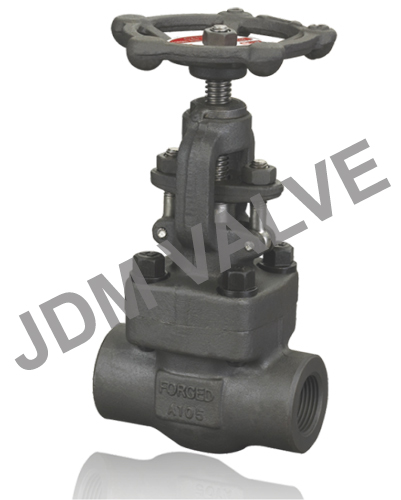

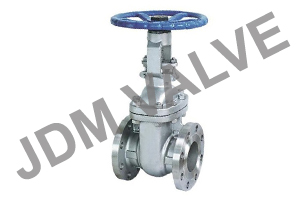

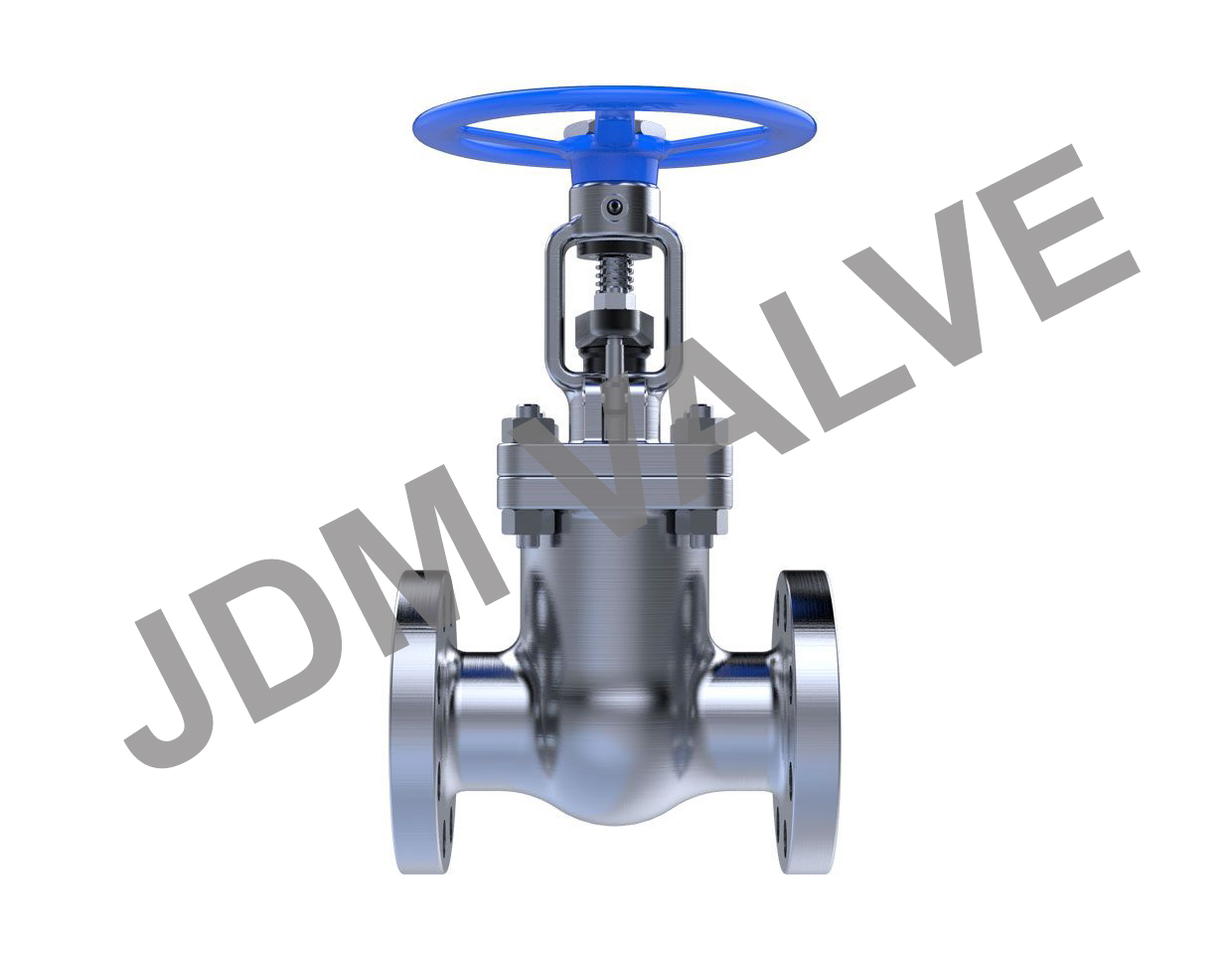

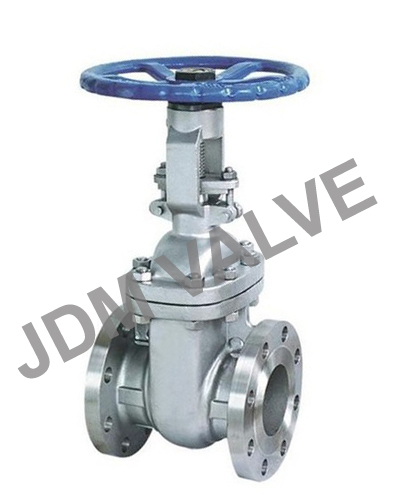

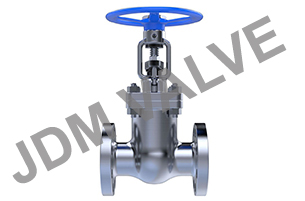

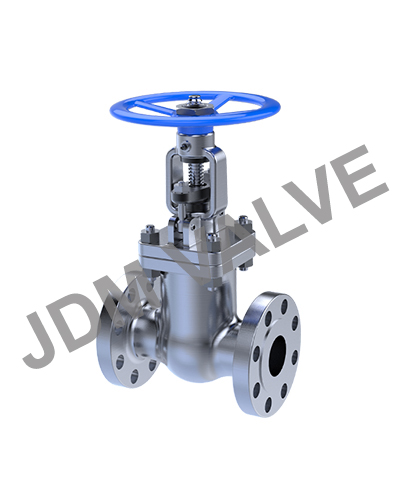

GATE Valve



A gate valve has a flat closure element that slides into the flow stream to stop the fluid. They are one of the most commonly used valves, and are primarily used to permit or prevent the flow of liquids.

The distinct feature of a gate valve is that the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired. Gate valves are primarily designed for on-off services. They are best used in systems which require infrequent use of the valve. They are designed for full-area flow to minimize the pressure drop and allow the passage of a pipe-cleaning pig. Since most of the flow change occurs near the shutoff, the relatively high fluid velocity causes disk and seat wear and eventual leakage if the valve is used to regulate flow.

JDM Gate Valve are highly appreciated by our client due to its unmatched quality and sturdy construction. The valve is widely demanded in industries and is offered at the market leading price.

Product Features:

  • Rigid
  • Sturdy Design
  • Low Pressure loss
  • Durable

Technical Specifications:

Type Bolted Bonnet, Rising & Non-Raising Stem  and Outside screw & Yoke
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Cast Alloy Steel (ASTM A 217 GR. WC 6/ WC 9)
Alloy Stainless Steel (ASTM A 351 GR. CF 3 / CF 3M)
Trim 13 % Cr. Steel / S.S. 304 / S.S. 316 / Stellited above class 600
Rating Class 150 , 300, 600, 900 , 1500 , 2500
Actuation Hand wheel, Gear
End Flanged, Butt Weld
Design Standard Mfg. Standard
Size For 150 #  to 600 # - 25 MM to 600 MM
For 900 # to 2500 # - 50 MM to 150 MM
