CHECK VALVE

Check valves are "automatic" valves that open with forward flow and close with reverse flow. The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. They are classified as one-way directional valves. This sort of function is essential for a variety of safety applications, as well as for preventing overflow. Most common types of Check valves are swing / tilting disc, Split disc / dual plate, Wafer, lift (piston and ball) and diaphragm.

Annu Valve Products manufactures and supplies wide range of Check Valve which includes Swing, Wafer, Disc and Dual Plate type.

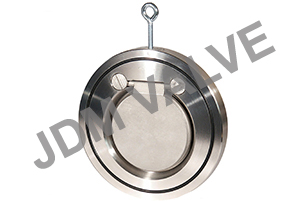

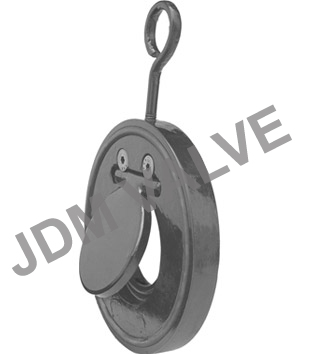

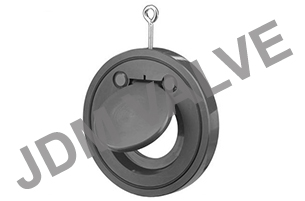

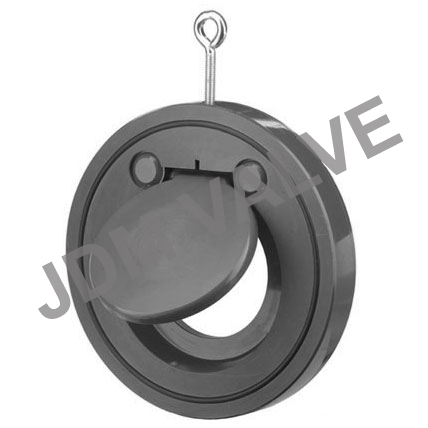

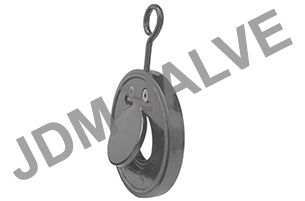

WAFER CHECK VALVE



Product Features:

  • Low cost compare to other convention check valve
  • Very low face to face dimensions hence space required for mounting is less than 10% of that conventional valves
  • Very low weight-total weight is only approximately 1/6 the weight of a conventional check valve
  • Short wafer body enables mounting the valve with shorter length fasteners of lesser number compared to flanged swing check valve. Approximately 50% saving in cost of fasteners.
  • Considerable secondary advantages resulting in substantial savings in handling, packing, transportation, installation and maintenance
  • Saving in terms of overall length required for piping
  • Tightening torque to be applied on the companion flange bolting is lower due to face sealing O-rings
  • Practically maintenance free due to fewer number of parts and simple construction
  • Can be installed in horizontal or in vertical line without any special pipe support.

Technical Specifications:

Type Single Disc Type
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Mild Steel
Any other alloy as per Buyer’s Specifications
Disc MOC Cast Iron (IS 210 Gr. FG 200)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Mild Steel
Any other alloy as per Buyer’s Specifications
Seal NBR / EPDM / VITON / NEOPRENE
End Facing Plain face, Raised face / Ring Joint facing
Hinge Pin M.S./C.S./S.S. or Buyer’s Specifications
Design Standard Mfg. Standard
Size 40 MM to 400 MM

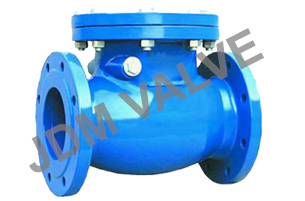

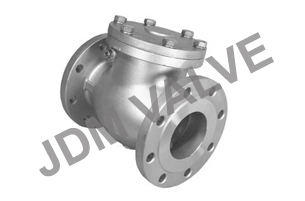

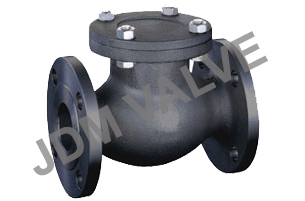

SWING CHECK VALVE



Product Features:

  • Bolted cover, Swing type disc
  • Seating is either metal-to- metal or metal seat  to  composition  disk
  • Allows for full flow area during normal operation
  • Easy Installation
  • Low pressure drop across the valve
  • Beautiful design

Technical Specifications:

Type Bolted Cover, Swing type / Lift type
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Cast Alloy Steel (ASTM A 217 GR. WC 6/ WC 9)
Alloy Stainless Steel (ASTM A 351 GR. CF 3 / CF 3M)
Trim MOC 13 % Cr. Steel / S.S. 304 / S.S. 316
Ends Flanged
Rating Class 150 , 300
Design Standard Mfg. Standard
Size 25 MM to 150 MM

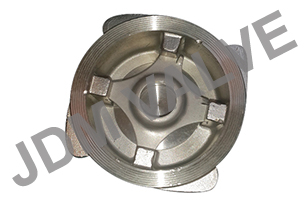

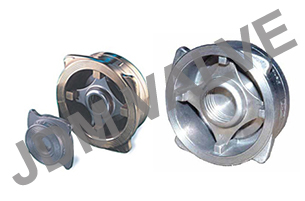

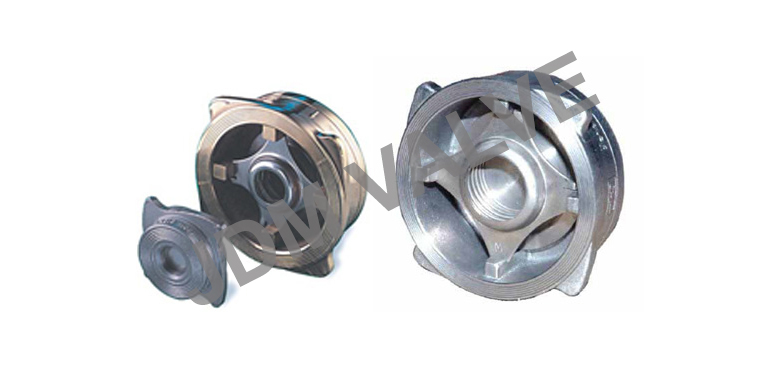

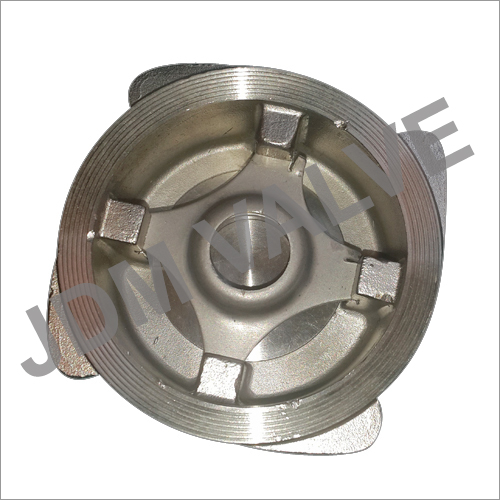

DISC CHECK VALVE



Product Features:

  • Compact and Robust Design
  • Stronger, Lighter and Smaller than Conventional Swing Check Valve
  • Single Disc type
  • Spring Loaded Disc to Prevent Reverse Flow in Pipe Lines
  • Easy To Installation between Two Pipe Flanges
  • Maintenance Free
  • Metal To Metal or Soft Seat option
  • Full Port Opening
  • Less Expensive to install

Technical Specifications:

Type Single Disc Type
Body, Cover and Hinge lever  MOC Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Any other alloy as per Buyer’s Specifications
Spring and Circlip S.S. 304 / 316 / 304L / 316L
End Facing Flangeless, Wafer type, Sandwich type
Design Standard Mfg. Standard
Size 15 MM to 150 MM






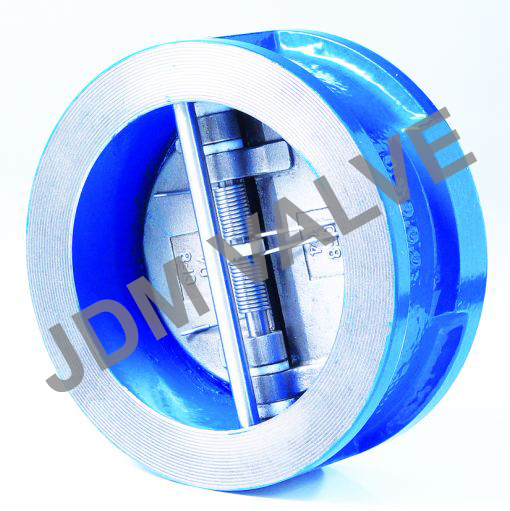

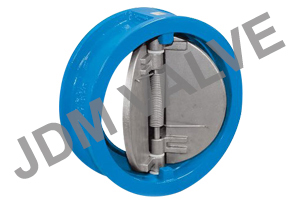

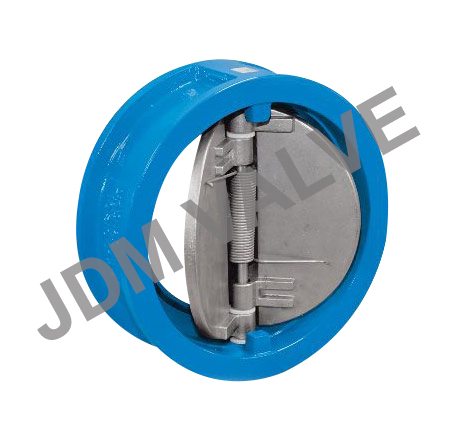

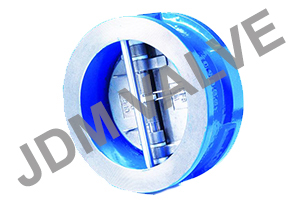

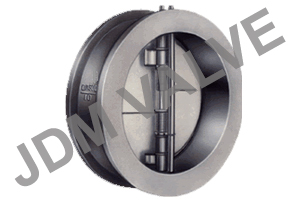

DUAL PLATE CHECK VALVE



Product Features:

  • Smaller in size and lighter weight
  • More feasible in operation
  • Dual spring loaded plates / disc hinged on a central hinge pin
  • Operates on the differential pressure between fluid flow pressure & spring torsion pressure
  • Only Check Valve which can be installed for flow upside down due to spring assisted closure
  • Efficient and Positive sealing under most flow and pressure conditions. Valve closes before flow reversal at zero velocity
  • Long life and trouble -free operation

Technical Specifications:

Type Wafer Type
Body, Cover and Hinge lever  MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Any other alloy as per Buyer’s Specifications
Disc MOC S.S. 304 / S.S. 316
Spring and Circlip S.S. 304 / 316 / 304L / 316L
End Facing Flangeless, Wafer type, Sandwich type
Design Standard Mfg. Standard
Size 15 MM to 100 MM
