Butterfly Valve

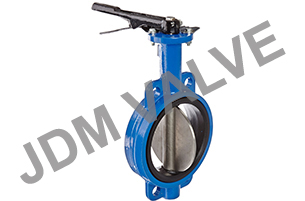

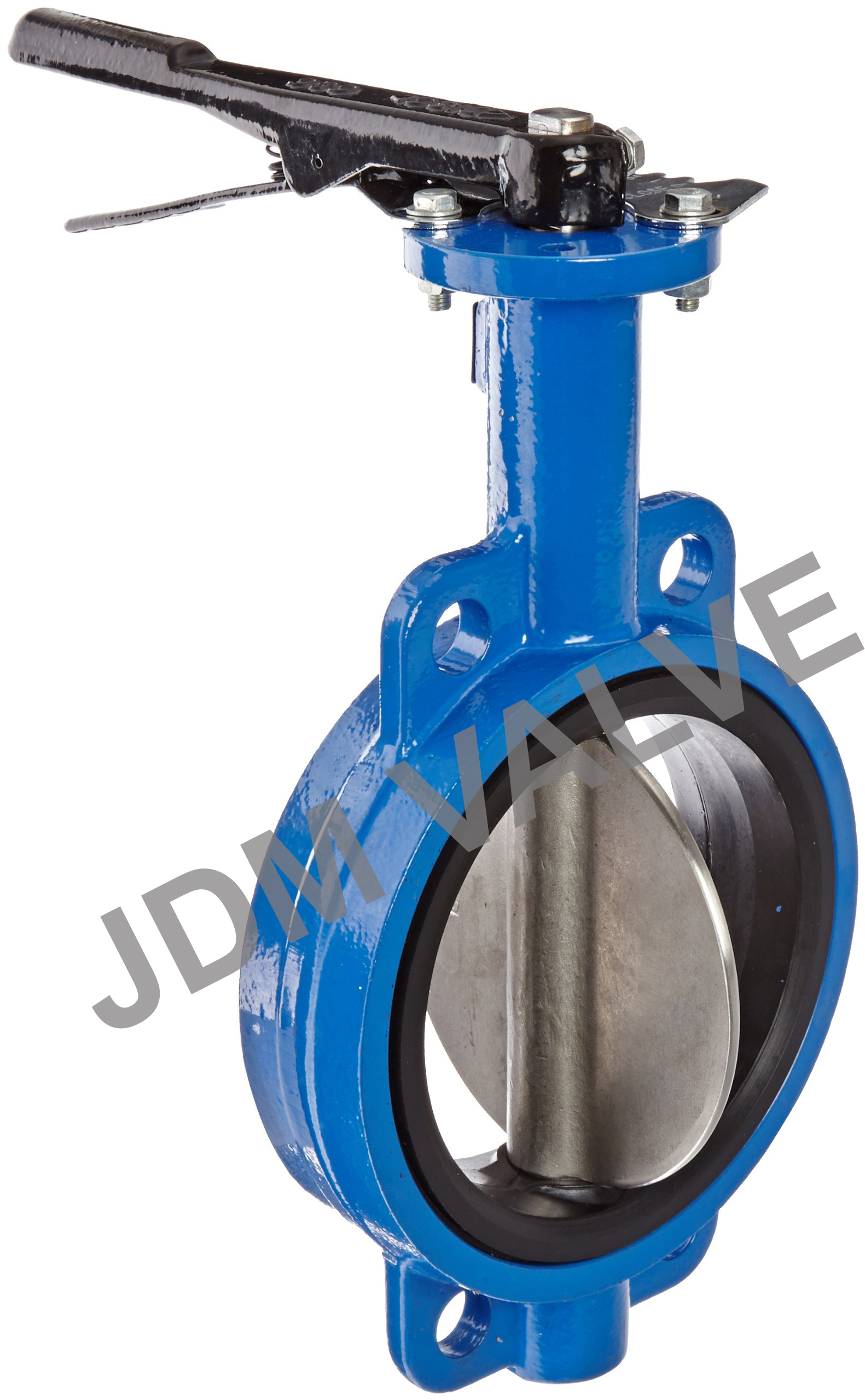

Butterfly Valve with Manual Handle

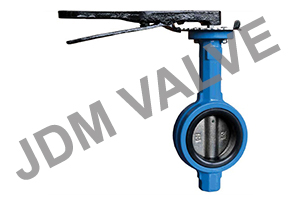

Butterfly Valve with Manual Handle

Butterfly Valve with Gearbox

Butterfly Valve with Gearbox




A Butterfly valve is a quarter-turn rotational motion valve that is used to stop, regulate, and start flow. Butterfly valves are easy and fast to open. A 90° rotation of the handle provides a complete closure or opening of the valve. Large Butterfly valves are usually equipped with a so-called gearbox, where the hand wheel by gears is connected to the stem. This simplifies the operation of the valve, but at the expense of speed.

Avail the high performance JDM Butterfly Valves at Annu Valve Products, manufactured in various types that include Slim Seal (Centre) disc type, Offset (Eccentric) disc type and Lug type.


Product Features:

  • Economical compare to other valve
  • Low weight
  • Compact design
  • Best in service requiring tight shut-off and precise flow control
  • Easy operation
  • Absence of sliding parts
  • Low head loss
  • Require less space for installation
  • Large capacity
  • Unbreakable pressed steel levers
  • Low leakage rates

Technical Specifications:

Type Slim Seal (Centre) disc / Offset (Eccentric) disc type/ Lug type
Body MOC Cast Iron (IS 210 Gr. FG 200)
Cast Carbon Steel (ASTM A 216 GR. WCB)
Cast Stainless Steel (ASTM A 351 GR. CF 8/ CF 8M)
Disc MOC C.I. / M.S. / C.S./S.S. 304 / S.S. 316
Seat Nitrile, Neoprene, EPDM, PTFE
Shaft C.S. / S.S. 410
End Facing Flanged, Wafer type
Rating Class 150
Operation Lever, Gear
Design Standard Mfg. Standard
Size 40 MM to 400 MM
